Krona Koblenz Kubica Adjustable Concealed Multiaxial Hinges K6200

Krona Koblenz Kubica Adjustable Concealed Multiaxial Hinges K6200

Sold : each

Availability

3-6 weeks from date of order

Bronze / Brushed Bronze / Polished Nickel / Black / Satin Gold - these finishes are special order - get in touch to discuss your needs

Product Information

Usage: Commercial and residential doorsets

Weight Rating

45kg - 2 Hinges

60kg - 3 /4 Hinges

Material

Zamak

Mininimum Door Thickness

32mm

Fire Rating

30 minutes

Additional Information

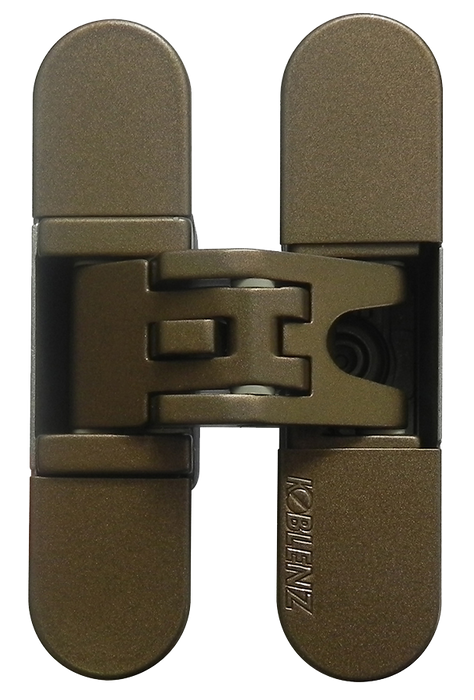

A concealed hinge made of highly resistant zamak for flush doors with wooden, steel and aluminium frame. CE marked, load capacity up to 45kg with 2 hinges fitted, 60kg with 3 hinges fitted. 180 degree opening angle with the minimumdoor thickness of 32mm. Wear-resistant bushing, lubrication/maintenance not required. Reversible for right and left hand doors.

3D-adjustable, all adjustments are independent, tool aided and self loading.

Adjustments: horizontal +/- 3,0mm/ -2,0mm - vertical +/- 2,5mm - depth +/- 1,0mm

Cover caps are supplied with this product

A overhead door closer can be fitted with this product
